Runway Centreline & TDZ High intensity bi/unidirectional inset fitting

Product Description

Uni or bi-directional inset fitting suitable for use in category I, II and III all weather operation as:
• Runway centreline
• TDZ fitting

Suitable for use in 6.6A airfield lighting circuits normally supplied from 45W, 65, 100W, 200W or 300W isolating transformers.



Complience with standards

FAA L-850, AC 150/5345-46

Features

• Lightweight and robust due to its aluminium alloy construction
• Long life halogen lamps with a typical life of 1500 hours at full intensity or over 3500 hours in normal usage
• Bi-directional Runway Centreline utilises 2 x 48W lamps
• Standard adaptor rings to suit 15”, 15.5” bases
• Prism removal and replacement achieved without the need for adhesive or sealants
• Colour beam variations achieved by dichroic coating
• Lamp bypass options available when required
• Pre-focused optics to simplify maintenance procedures
• Light channel within 5mm of grade
• Plug for pressure testing
• Low temperature - temperature at centre of top cover remains below 160°C ICAO and FAA limit
• All fasteners are stainless steel

Electrical supply

Suitable for use in 6.6A airfield lighting circuits normally supplied from 45W, 65, 100W, 200W or 300W isolating transformers.

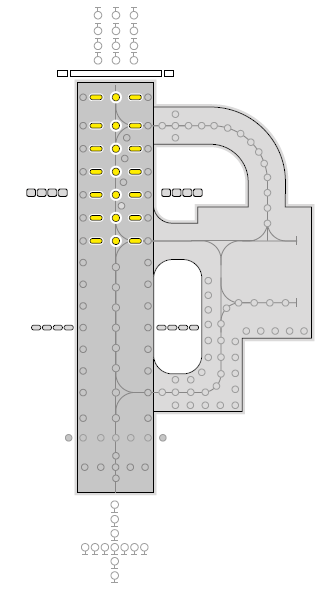

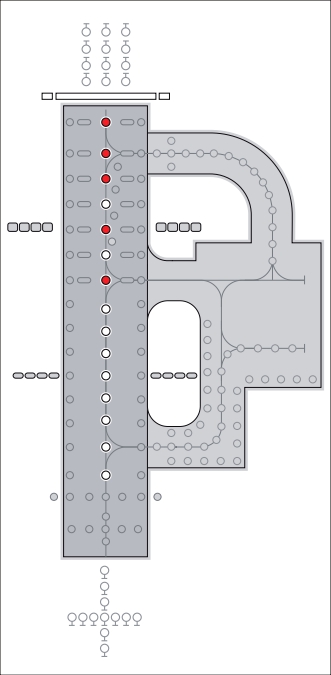

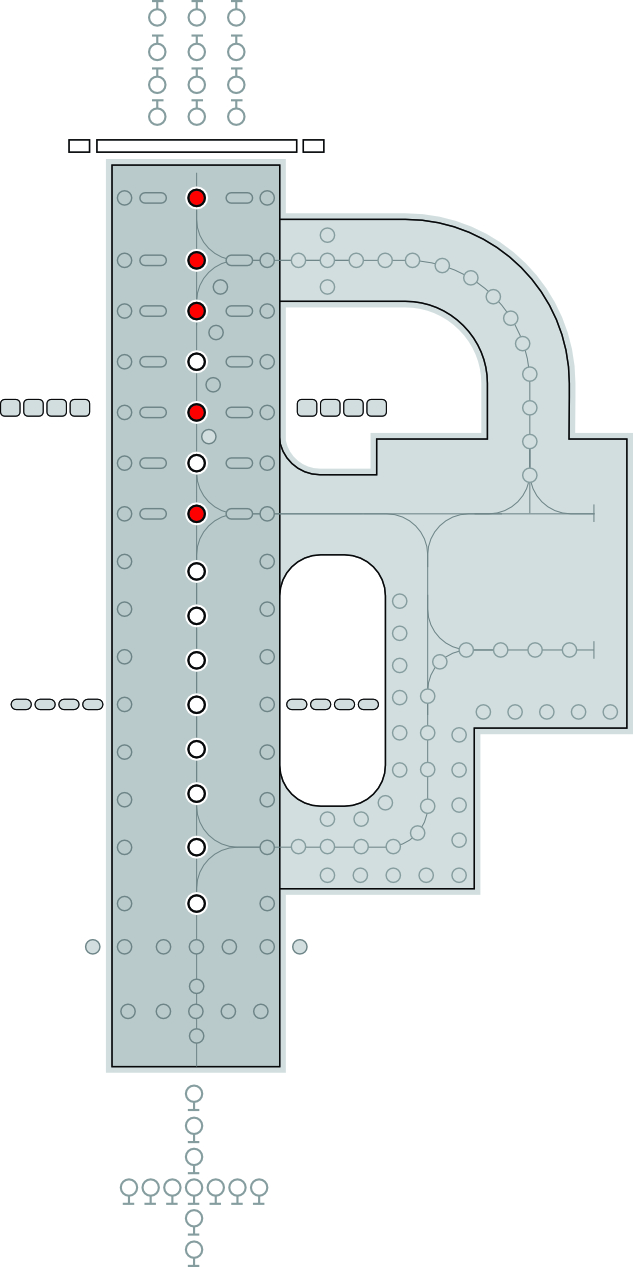

Fixture Position on Runway
