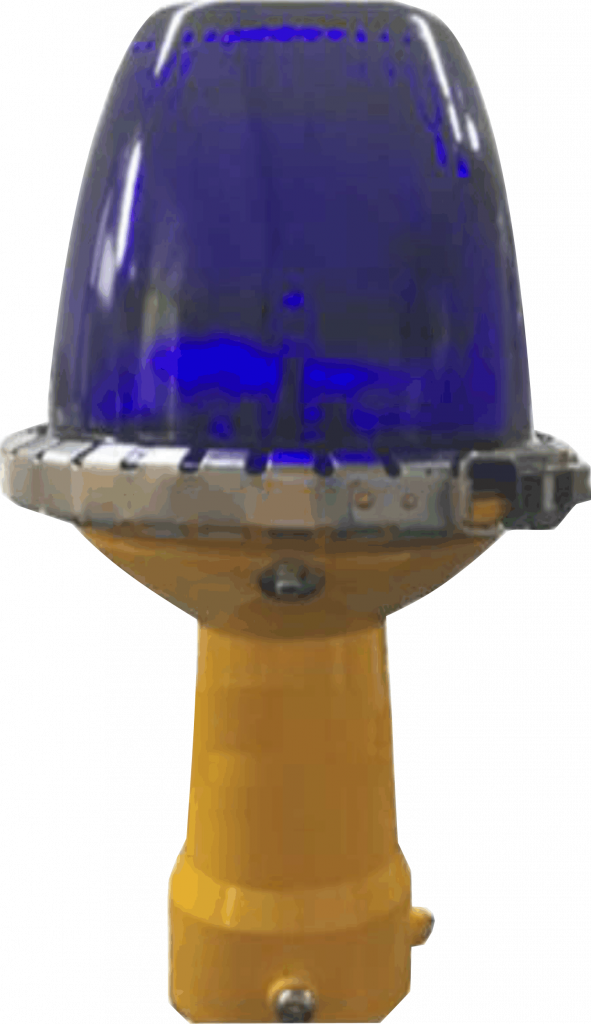

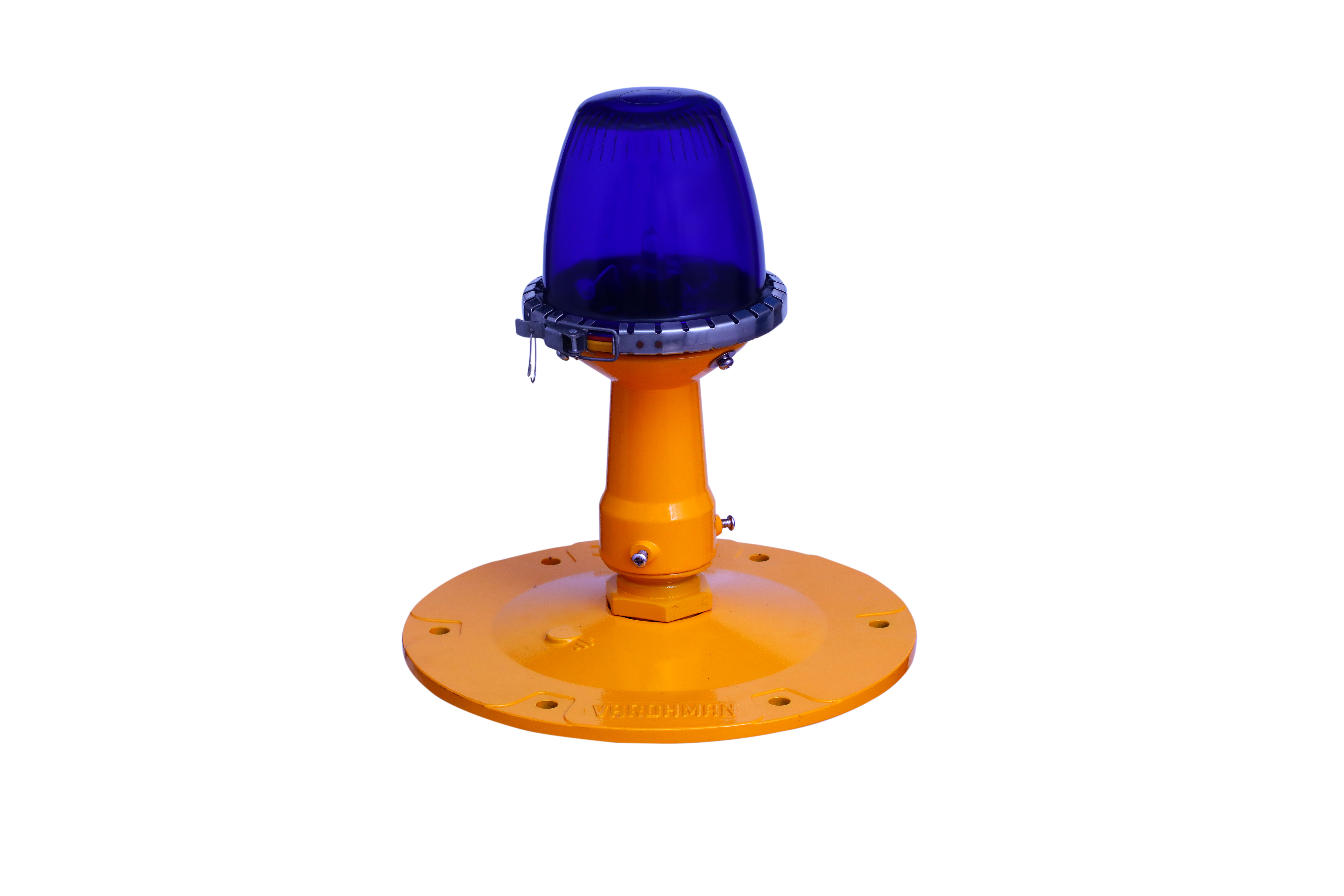

Elevated Omni-directional Light

Product Description

It is an Omni-directional tungsten halogen taxiway and apron edge fitting for CAT III all weather operation airfield ground lighting (AGL) systems.



Compliance with Standards

FAA L-861, AC 150/5345-46



Features

•  Lightweight and robust due to its predominantly aluminium alloy construction which also gives good corrosion resistance.
•  Removal of glass dome for lamp replacement or maintenance achieved without the need for any tools due to the simple bayonet fit of the glass.
•  Ball joint mounting arrangement facilitates levelling of the light on installation.
•  Choice of mounting stems available (M32 threaded or 25mm (1”) plain).
•  Mounting stem compatible with 2” BSP Mounting using frangible coupling.
•  Frangibility inherent in the M32 threaded mounting stem.
•  Smooth outer glass surface resists build up of dirt.
•  Bi-pin or PK30D lamp options.
•  Optional lamp by-pass device can be fitted if required.
•  Powder coat paint finish in golden yellow.
•  Lamp life no less than 1000hrs.



Electrical supply

Suitable for use in 6.6A airfield lighting circuits normally supplied from 1 x 45W isolating transformer. Power consumption varies between 30W and 45W depending upon type of lamp used.

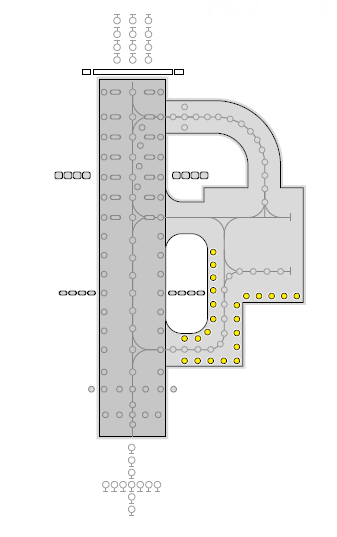

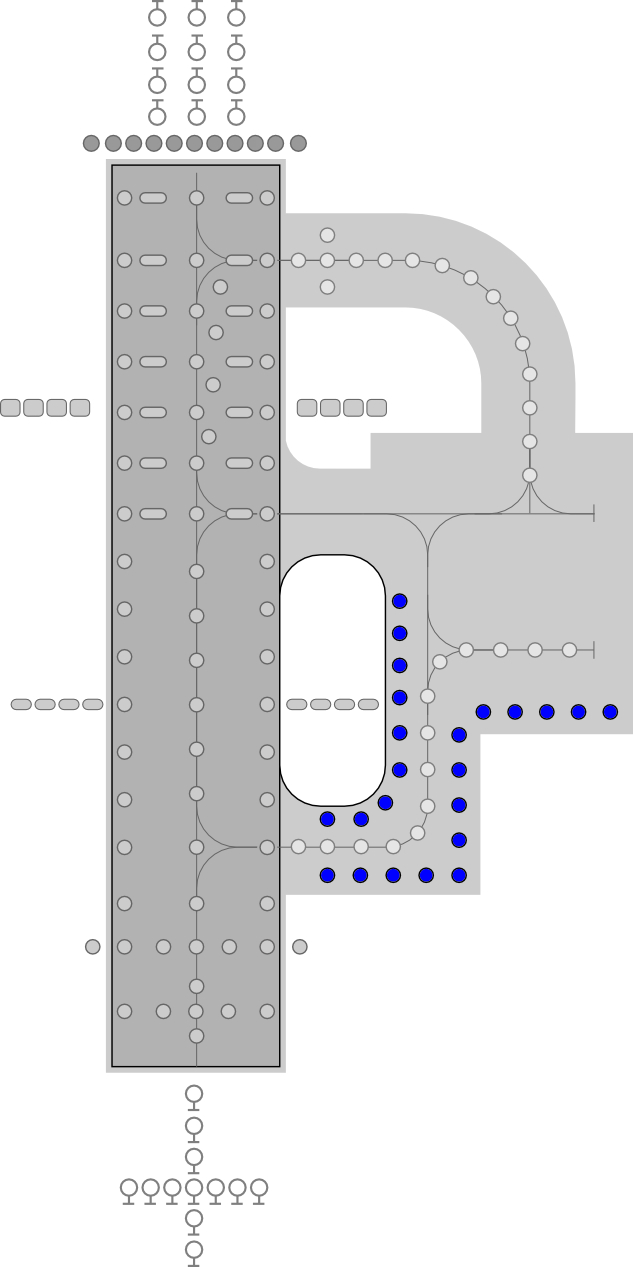

Fixture position  on runway
