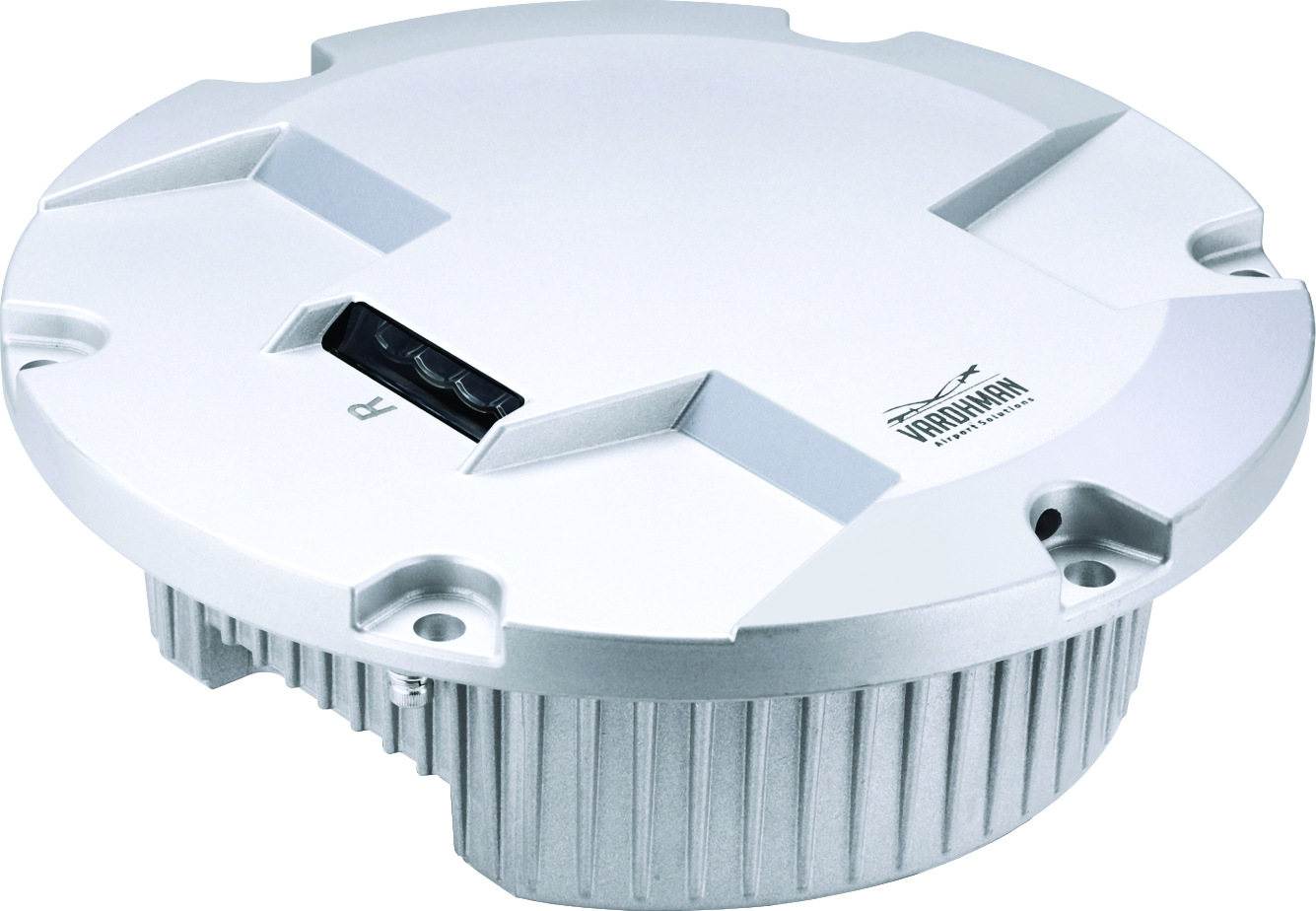

Runway end

Product Description

Inset Runway end fitting for use in category I, II & III all weather operation airfield lighting systems. Suitable for use in 6.6A airfield lighting circuits, normally supplied from one 100W isolating transformer.



Compliance with standards

FAA L-850, AC 150/5345-46



Features

•  Lightweight and robust due to its aluminium alloy construction which also gives good corrosion resistance.
•  Red dichroically coated lens.
•  Full range of FAA and PSA adaptors available.
•  Long life, low energy lamps (1500 hrs/105W 6.6A at full brilliancy) - 1 off per fitting.
•  Pre-focused optics simplify maintenance procedures.
•  Light channel within 5mm from Grade.
•  Two point fixing into mounting adaptor/seating pot for faster installation and removal of light fitting.
•  Low profile (12mm) to reduce possibility of damage to aircraft and vehicle tyres.
•  Prism accurately located and secured in the body casting without the need for sealing compound to facilitate removal and replacement
•  All fasteners are stainless steel



Electrical supply

Suitable for use in 6.6A airfield lighting circuits, normally supplied from one 100W isolating transformer.

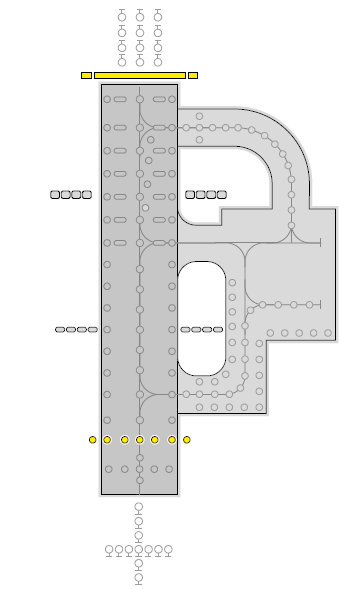

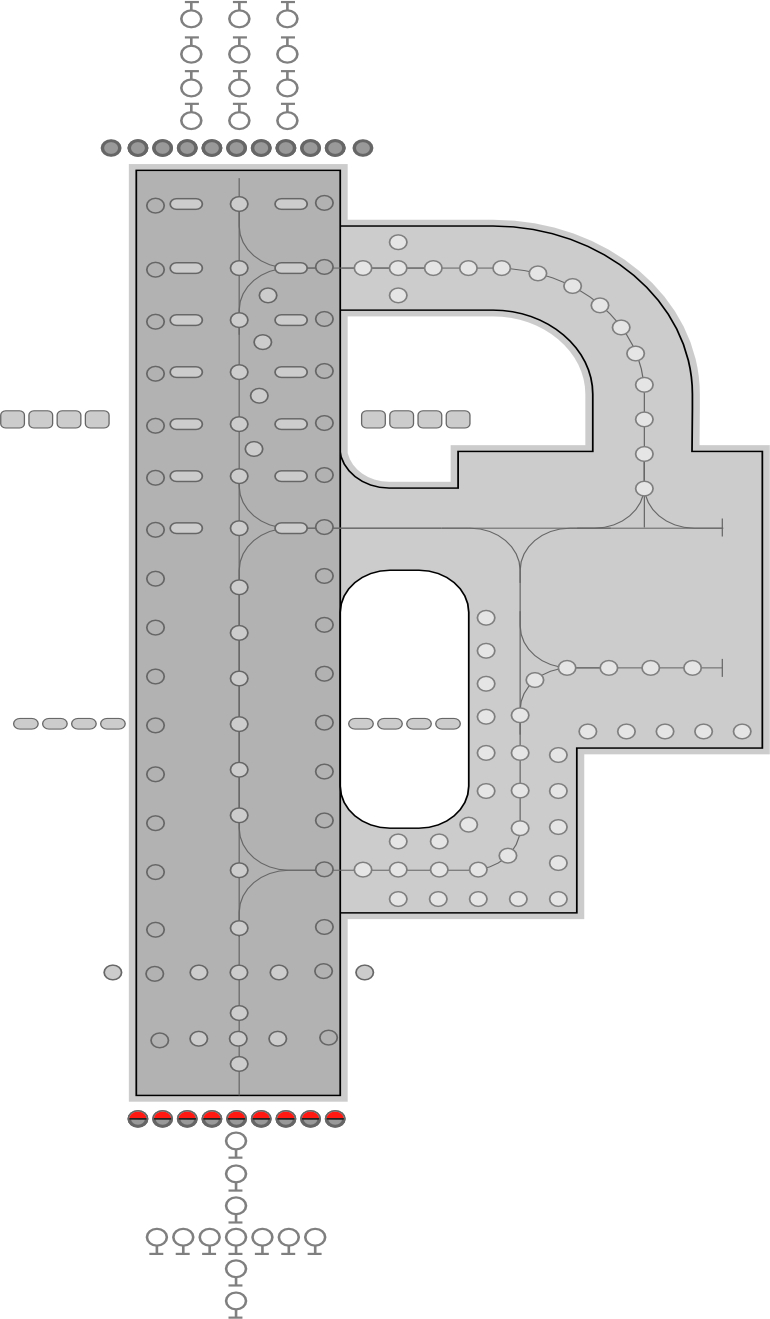

Fixture position on runway
