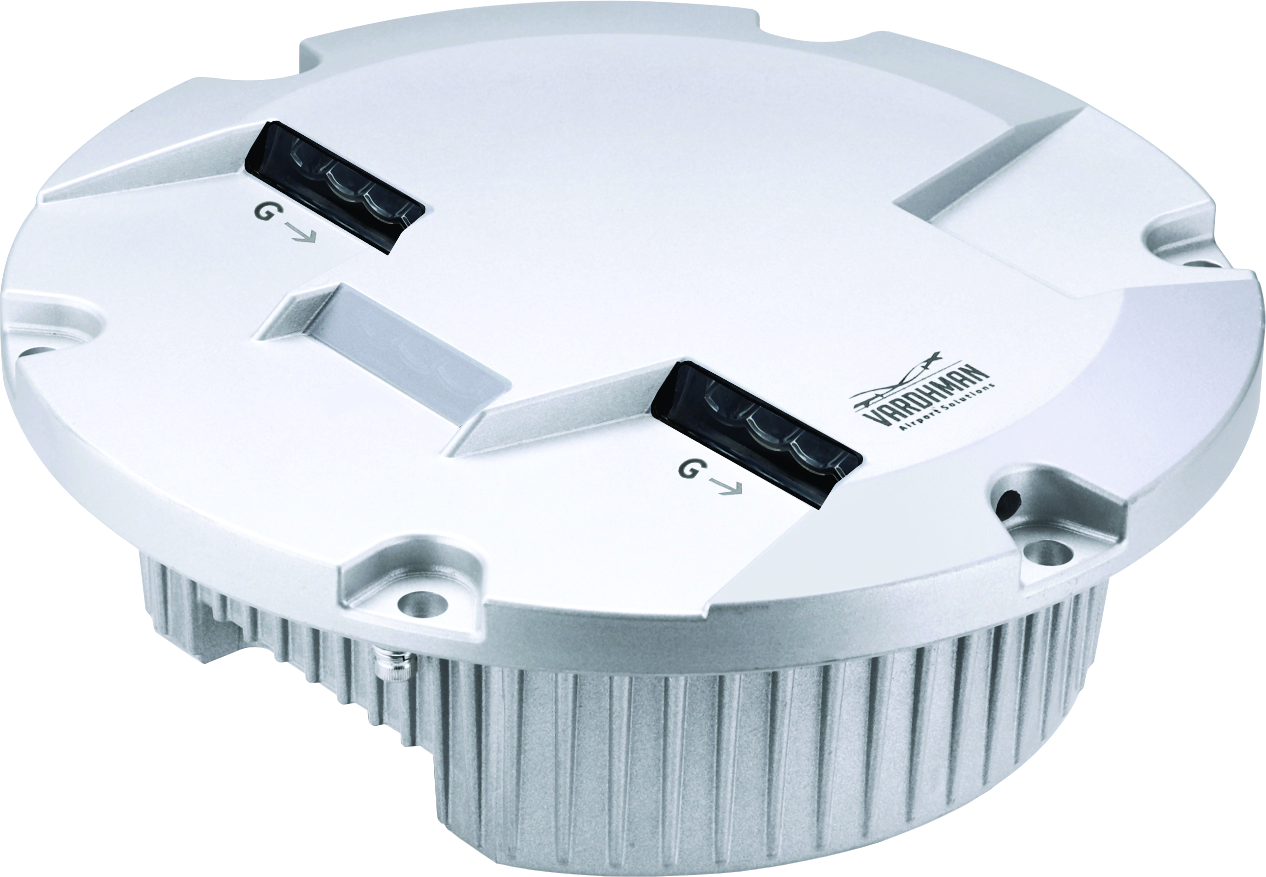

INSET THRESHOLD LIGHT

Product Description

High intensity inset runway threshold fitting suitable for use in category I, II and III all weather operation airfield lighting systems. Suitable for use in 6.6A airfield lighting circuits normally supplied from 100W, 200W or 300W isolating transformers.



Complience with standards

FAA L-850, AC 150/5345-46



Features

  1. Lightweight and robust due to its aluminium alloy construction
  2. Long life halogen lamps with a typical life of 1500 hours at full intensity or over 3500 hours in normal usage
  3. Standard adaptor rings to suit 15”, 15.5” bases
  4. Prism removal and replacement achieved without the need for adhesive or sealants
  5. Colour beam variations achieved by dichroic coating
  6. Lamp bypass options available when required
  7. Pre-focused optics to simplify maintenance procedures
  8. Light channel within 5mm of grade
  9. Plug for pressure testing
  10. Low temperature - temperature at centre of top cover remains below 160°C ICAO and FAA limit
  11. All fasteners are stainless steel



Electrical supply

Suitable for use in 6.6A airfield lighting circuits normally supplied from 100W, 200W or 300W isolating transformers.

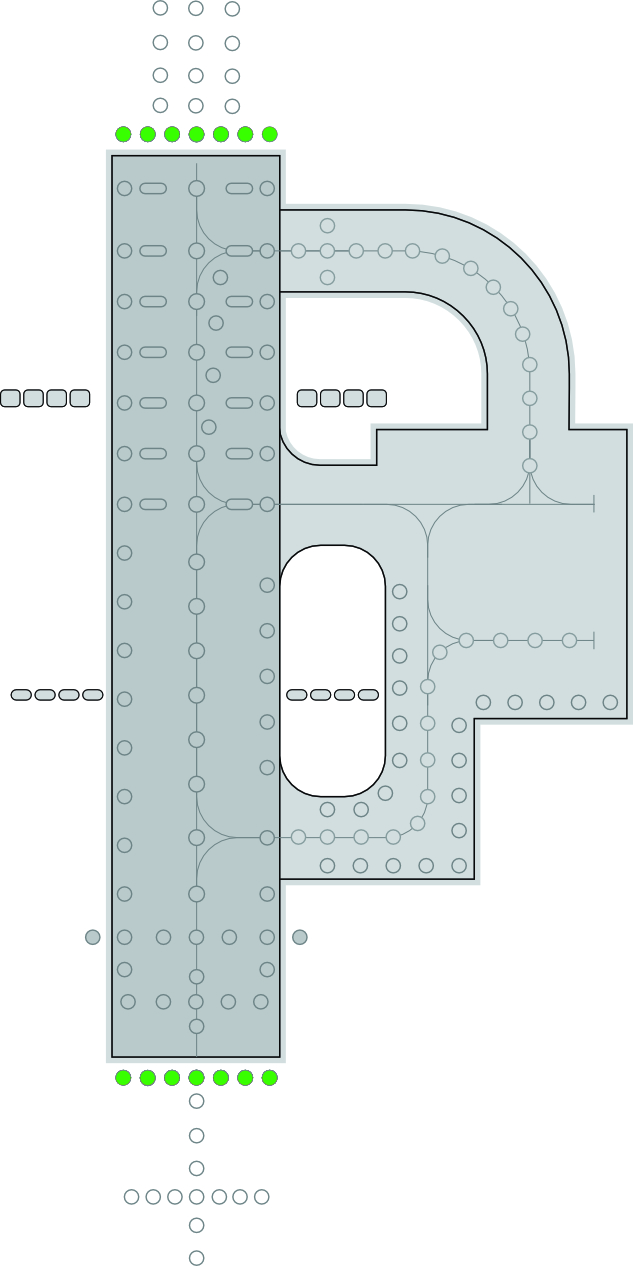

Fixture position on runway
