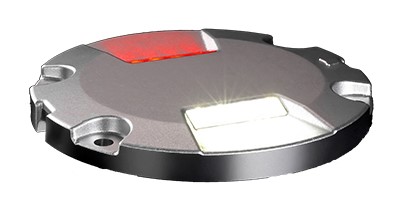

RUNWAY CENTERLINE LIGHT

Product Description

Runway centerline, Land and Hold Short Operations (LAHSO). CAT III all weather operation airfield ground lighting (agl) systems.As applicable to the application, compliance with other civil aviation and military regulations confirmed on request.Light Direction and Colors, Bidirectional: white-white, white-red .Unidirectional: white, red.



Compliant with Standards

FAA L-850 A, AC 150/5345-46

Features

  • The use of the latest LED technology ensures that power consumption is kept to a minimum, lowering the running temperature and thus increasing the LED module's life time, which is estimated to be greater than 60,000 hours.
  • Designed to meet the harsh environment the fixtures will operate in a temperature range of -55 °C to +55°C.
  • Ingress Protection of IP67.

    •

    Electrical supply

    Suitable for use in 6.6A airfield lighting circuits, normally supplied from one 100W isolating transformer.

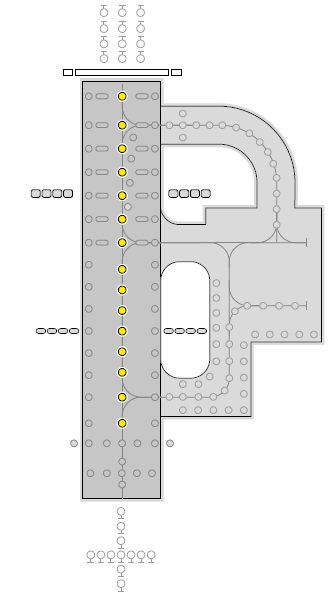

    Fixture position on runway
