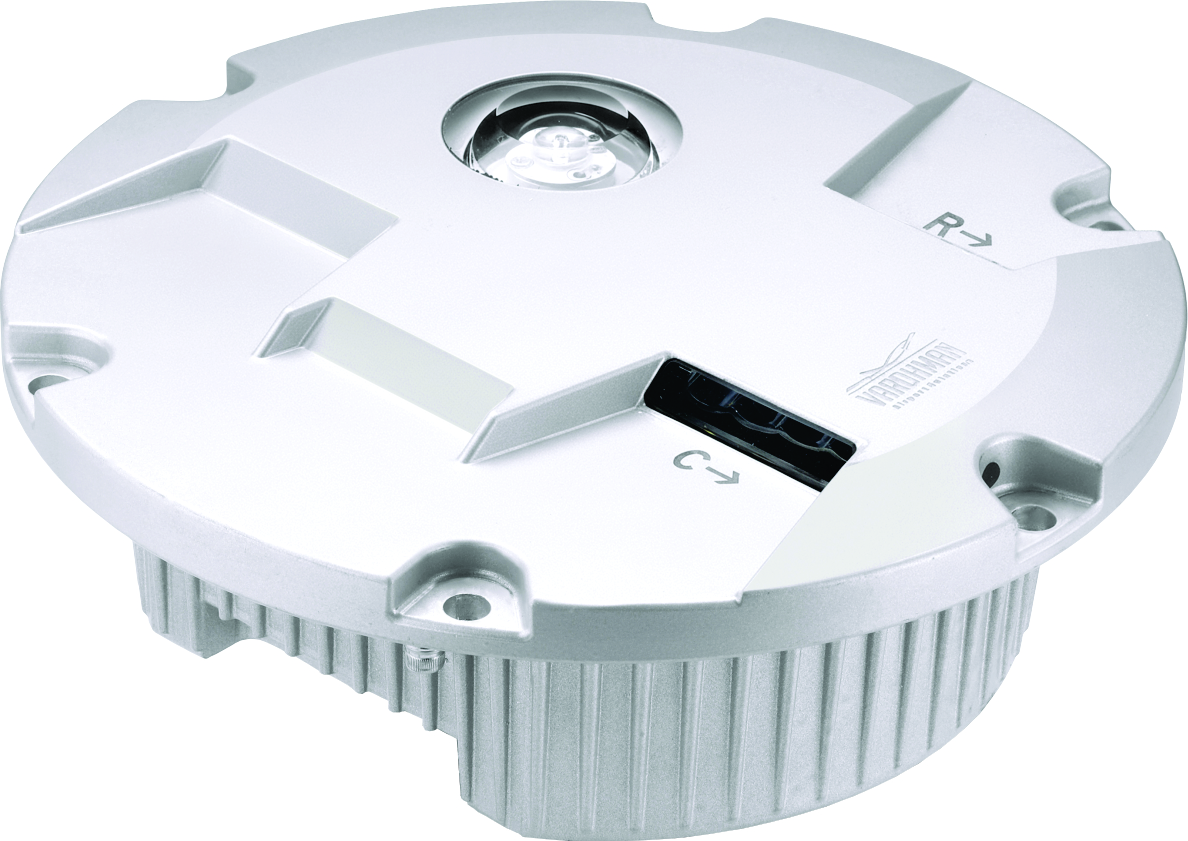

Runway edge Low intensity omni-directional inset fitting

Product Description

Omni-directional medium intensity inset fitting for taxiway, helipad, LI runway edge and general applications.



Compliance with standards

FAA L-852, AC 150/5345-46



Features

•  Body casting manufactured from aluminium alloy for lightness, strength and durability
•  IEC body style as standard, 8” 2 hole and 8” 3 hole versions available
•  Long life lamps (objective life of 1500 hours at full brilliancy)
•  Prism removal and replacement achieved without the need for adhesive or sealants
•  3 hole body option for direct installation to SRA8/13 adaptor ring
•  Colour beam variations achieved by dichroic coated or coloured glass
•  Lamp by-pass options available if required
•  Pre-focused optics to simplify maintenance procedures
•  Low profile (10mm)
•  Light channel within 5mm of Grade
•  Natural anodised finish (as standard), powder coated NATO green or golden yellow



Electrical supply

Suitable for use in 6.6A airfield lighting circuits normally supplied from 1 x 45W, 65W or 100W isolating transformer. 120V and 240V mains supply versions also available. Power consumption is either 30W, 36W, 40W, 49W or 105W depending upon type of lamp fitted.



Fixture position on runway
